"Torit Donaldson Cartridge Collectors"



Torit has 17 distinct collector lines and 16 different filter cartridges options. Their exclusive patented Ultra-Web® nanofiber cartridge filter is the only cartridge filter engineered to deliver cleaner air, longer filter life, and lower costs. Ultra-Web filter cartridges are standard on all Donaldson® Torit® cartridge collectors.

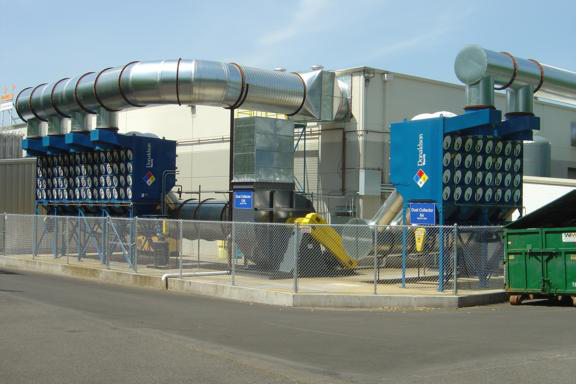

torit DFO
Large 130,000 CFM Cartridge Dust collection system for
Metal grinding and sand blasting.


DFO collector

Torit Down-Flo Oval 5,000cfm plasma smoke collection system with automated VFD
All American Machine
Eugene, OR

torit dust collector

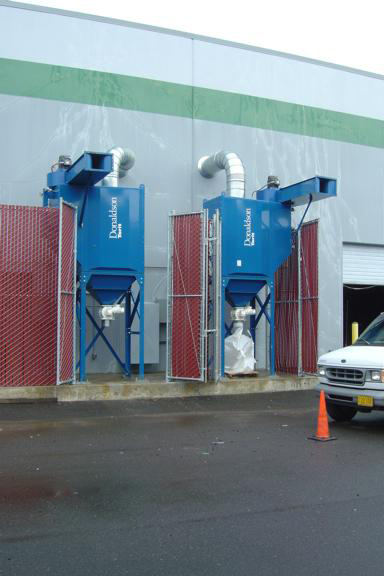

2) DOWNFLO OVAL Cartridges collector for graphite powder
from CNC milling

Torit is a definite over-achiever with it's Lower initial cost - Long-term
energy savings - Fewer filter changouts - Reduced filter disposal cost - Easy system set-up
- Up to 25% more filtration capacity than other same-sized cartridge collectors.

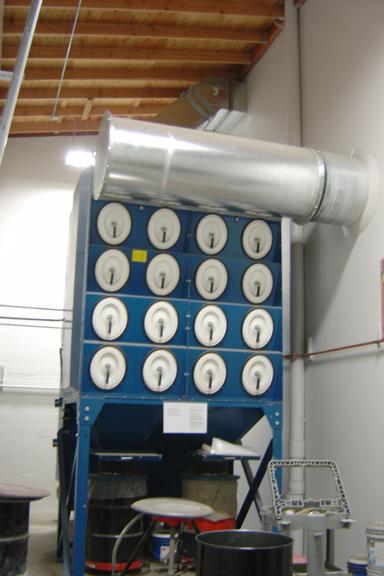

Torit cartridge collector

5,000 CFM DOWNFLO OVAL with ground mount blower (not shown) for ceramic dust

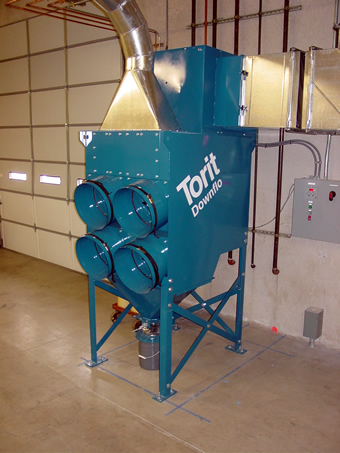

Torit toxic  smoke collectorLPI
Portland, OR
LPI - Portland, OR

2,000 CFM Toxic Material Laser Smoke Collector with high pressure fan,
hepa filter and chamber silencer. Extremely quiet operation. Note "BAG-OUT"
collars for 0 exposure filter changes.

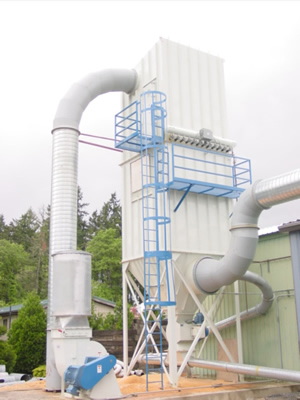

"Torit Baghouse Collectors and Systems"

torit baghousetorit baghouse























Wood Castle,
Corvalais, OR
"Energy saving Equipment"
The main focus of ther project was to design a heavy duty, energy efficient system that would provide the customer with the added capacity that their growing company required. The customer was applying for energy efficiency rebates from the sate and their utility. The customer required minimal disruption in their production. The existing chip bim with cyclone was used to store all of the collected dust.

Their existing push in cyclone with baghouse type after filter was using a 50 hp main fan, a 30 hp material handling fan (to the chip bin) and
a 3 hp booster to run the plant at an ait volume of 11,000 cfm. With that, zones had to be gated and shifted to operate. There had been some problems with blockages in the airlocks.

The system designed by AIR-TEK NW used a single 60 hp high efficiency airfoil type blower on the clean air side of a modern pulse jet baghouse to provide 16,000 cfm. The fan blowing up to the cyclone by the main blower.

The model FTP-144-10 pulse jet baghouse, airlocks, high efficiency blower, silencer and some special components were designed and built by LMC West of Riverbank, CA. This baghouse provides 2,400 spuare feet of filter for an air to cloth ratio of 6.67/1. It also features a
"walk-in-plenum" for easy inspection and service of the filters in any weather.

Much of the existing ductwork was left in place. Only areas where the line needed to be increased for the added air volume was replaced. New 24" diameter airlocks were used on the gaghouse discharge and the cylclone on the chip bin to eliminate blockages.

The project was began on Wednesday before Thanksgiving 2001, and was running by Sunday evening. The following week the old cyclone was removed.

The total project cost $88,707. Rebates and incentives covered 38% to reduce Woodcastle's bill to $33,282.00. The rebate was based on cfm/kwh efficiency. The system proposed by AIR-TEK Northwest was at least 18% more efficient than the next closest vendor resulting in a higher rebate to the customer. Estimated yearly energy savings are $8,059 even with the increased volume.



really big baghouse

Esco Corporation
Portland, OR
100,000 cfm dust and smoke collection system up and running. Want to see it for
yourself. Please call to arrange a tour.
